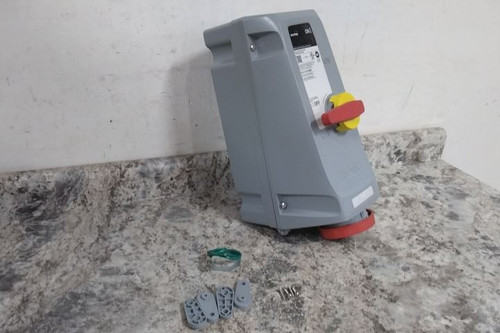

This is a Leviton pin and sleeve mechanical interlock. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pin and Sleeve Mechanical Interlock |
| Manufacturer Part Number | 460MI7WLEV |
| Circuit Breaker Amp Rating | 60 A |
| Voltage Rating | 480V AC |
| Circuit Breaker Type | 480 VAC |
| Compatible with Series | LEV |
| Contact Material | Nickel-Plated Brass |
| Current Rating | 60 A |
| Electrical Connection Type | Pin and Sleeve |
| Fuse Protection | Non-Fused |
| Fuse Type | No |
| Handle Material | PBT+PC with TPE Overmold |
| Horsepower Rating | 40 hp |
| Housing Color | Red |
| Housing Material | PBT+PC |
| IP Rating | IP66; IP67; IP68; IP69K |
| Locking Handle | Yes |
| Maximum Operating Temperature | 75 °C |
| Minimum Operating Temperature | -40 °C |
| NEMA Enclosure Rating | 3R; 4X; 12 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Overall Depth | 9.4 in |
| Overall Height | 17.37 in |
| Overall Width | 9.25 in |
| Phase | Three |
| Resistance Properties | UV/Sunlight Resistant; Watertight |
| UL 94 Flammability Rating | V-0 |
