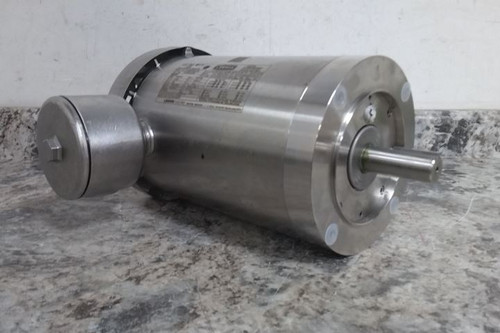

This is a Leeson washdown motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Washdown Motor |
| Manufacturer Part Number | 121911.00 |
| Motor Design | Three-Phase |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Nameplate Horsepower @ 60 Hz | 2 hp |
| Nameplate Voltage @ 60 Hz | 230/460VAC |
| Usable @ 208V | Not Usable at 208V |
| Nameplate RPM @ 60 Hz | 1,745 RPM |
| Phase | Three |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Full Load Current @ 60 Hz | 5.8/2.9 A |
| Frame Size | 143TC |
| Frequency | 60/50 Hz |
| Insulation Class | F |
| Output Shaft (Dia x L) | 7/8 in x 2 in |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 in |
| Mounting Type | C-Face |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nominal Efficiency | 86.5 % |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Body Diameter | 6.56 in |
| Bolt Circle Diameter | 5-7/8 in |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Endshield Material | Stainless Steel |
| Frame Finish | Unfinished |
| Frame Material | Steel |
| Length Less Shaft | 11-3/16 in |
| Max. Ambient Temp. | 40 °C |
| Mounting Position | Horizontal |
| NEMA Design Class | B |
| Overall Length | 13-3/16 in |
| Removable Base | No |
| Shaft Design | Keyed |
| Usable @ 200V | Not Usable at 200V |
| CC Number | CC005A |
| Weight | 56 lb |
| Motor Application | General Purpose |
| Full Load Amps @ 50 Hz | 4.8/2.4 A |
| Nameplate Voltage @ 50 Hz | 460V AC |
