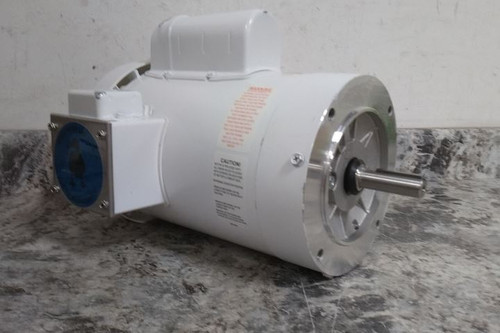

This is a Leeson washdown motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The capacitor cover is dented. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Washdown Motor |
| Manufacturer Part Number | 114319.00 |
| Motor Application | Washdown |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 1-1/2 |
| Nameplate RPM | 1,725 |
| Voltage | 115/208-230VAC |
| Hz | 60 Hz |
| Full Load Amps | 9.9 A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 56C |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 °C |
| NEMA Design | B |
| Removable Base | No |
| Motor Shaft Rotation | CCW; CW |
| Motor Mounting Type | Face |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Steel |
| Endshield Material | Cast Aluminum |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1-7/8 in |
| Shaft Material | Stainless Steel |
| Motor Shaft Design | Keyed |
| Motor Bearings | Ball |
| Overall Length | 13-3/8 in |
| Length Less Shaft | 11-7/16 in |
| Body Dia. | 7.38 in |
| Weight | 46 lb |
| Bolt Circle Dia. | 5-7/8 in |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Nominal Efficiency | 71 % |
| Product Type | Washdown Motor |
