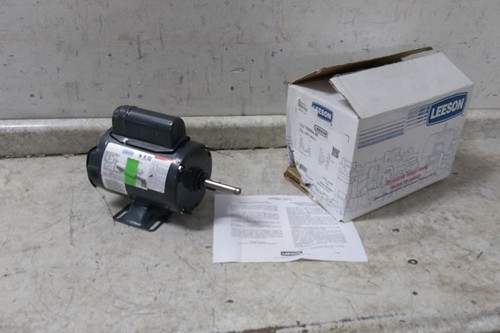

This is a Leeson farm duty motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There is some corrosion on the shaft. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Farm Duty Motor |
| Manufacturer Part Number | 100604.00 |
| Mounting Type | Rigid Base |
| Motor Design | Permanent Split Capacitor |
| Number of Speeds | 1 |
| Nameplate Horsepower @ 60 Hz | 1/3 hp |
| Nameplate RPM @ 60 Hz | 1,140 RPM |
| Frame Size | 56Z |
| Nameplate Voltage @ 60 Hz | 115/230V AC |
| Full Load Amps @ 60 Hz | 3.6/1.8 A |
| Phase | Single |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Motor Thermal Protection | Auto |
| Nameplate Service Factor @ 60 Hz | 1 |
| Sub Application | Poultry/Livestock Fan |
| Shaft Diameter | 5/8 in |
| Shaft Length | 3-1/8 in |
| Motor Shaft Rotation | CW/CCW |
| Usable @ 208V | Usable at 208V |
| Insulation Class | B |
| Ambient Temperature - Maximum | 40 °C |
| Overall Length | 11-3/8 in |
| Bearing Type | Ball |
| Length Less Shaft | 8-1/4 in |
| Duty | Continuous |
| Shaft Design | Keyed |
| Frame Material | Steel |
| Standards | CSA Certified; UL Listed |
| Nominal Efficiency | 70 % |
| Mounting Position | Horizontal |
| Weight | 26 lb |
| Usable @ 200V | Not Usable at 200V |
| Finish | Enamel-Coated |
| Frequency | 60 Hz |
| Mounting Stud Thread Size | #10-32 |
| Bolt Circle Diameter | 5-1/8 in |
| Mounting Stud Pattern | 7-15/16 in x 8-10/16 in |
| Mounting Stud Length | 3/4 in |
