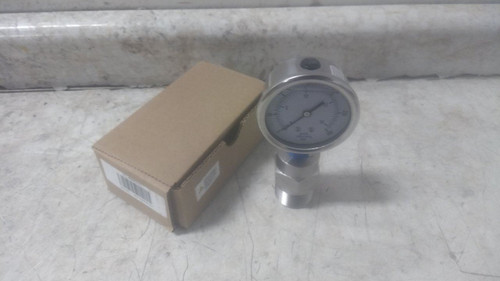

This is a Kodiak pressure gauge with diaphragm seal. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pressure Gauge with Diaphragm Seal |
| Manufacturer Part Number | KC301L25300/DSF14-M |
| Accuracy | ±1.60% |
| Accuracy Grade | ASME B40.100 |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Case Color | Stainless Steel |
| Case Depth | 1.28 in |
| Case Diameter | 2.8 in |
| Case Material | Stainless Steel |
| Cleaned for Oxygen Service | No |
| Dial Color | White |
| Diaphragm Seal Type | Welded |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | 304 Stainless Steel |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Lens Material | Polycarbonate |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Nominal Dial Size | 2-1/2 in |
| Panel-Mountable | No |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge with Diaphragm Seal |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Scale Minor Graduations | 5 |
| Primary Scale Units | psi |
| Process Connection | 1/4 in NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Connection Size | 1 in |
| Seal Diaphragm Material | 316 Stainless Steel |
| Seal External Material | 316 Stainless Steel |
| Seal Fill Liquid | Mineral Oil |
| Seal Lower Housing Material | 316 Stainless Steel |
| Secondary Scale Units | bar |
| Sensor Material | 316 Stainless Steel |
| Series | KC301; DSM35FLUSH |
| Socket Material | 316 Stainless Steel |
| NEMA Enclosure Rating | 4X |
| Operating Temperature - Maximum | 160 °F |
| Operating Temperature - Minimum | 20 °F |
| Primary Scale Pressure Measurement - Maximum | 300 psi |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Seal Process Media Temperature - Maximum | 328 °F |
| Seal Process Media Temperature - Minimum | 0 °F |
| Seal Working Pressure - Maximum | 390 psi |
| Secondary Scale Pressure Measurement - Maximum | 21 bar |
| Secondary Scale Pressure Measurement - Minimum | 0 bar |
| Includes Acid Leak Detection | No Acid Leak Detection Included |
| Wetted Parts Material | 316 Stainless Steel 316 Stainless Steel |
| Gauge Wetted Parts | Stainless Steel |
