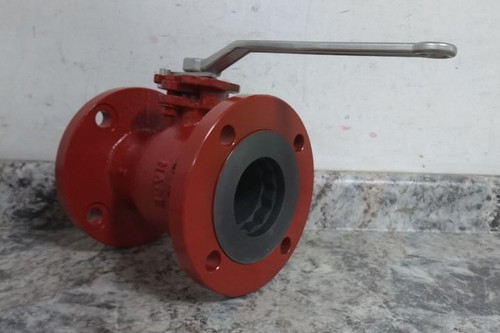

This is a Keckley ball valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches around the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Manual Two-Way Ball Valve |
| Manufacturer Part Number | BVF1RF2RCSRGSL-300 |
| For Media | Combustible Gases |
| Body Material | Carbon Steel |
| Valve Construction | One-Piece |
| Valve Body Style | Straight |
| Ball Port Style | Standard Port |
| Nominal Valve Size | 3 in |
| Connection Size - Side 1 | 3 in |
| Connection Type - Side 1 | Flange |
| Connection Size - Side 2 | 3 in |
| Connection Type - Side 2 | Flange |
| ANSI Flange Class | Class 150 |
| Max. Pressure (CWP) | 285 psi |
| Max. Pressure (Steam) | 200 psi |
| Max. Pressure (Combustible Gas) | Not Rated |
| Vacuum Service Rating | -29.912 in Hg |
| Coefficient of Volume (Cv) | 425 |
| Handle | Locking Lever |
| Handle Material | Stainless Steel |
| Handle Color | Red |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Seal Material | Graphite |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Vented Ball Valve | Non-Vented |
| Media Temp. Range | -20 °F to 500 °F |
| 3-A Compliance | Not Rated |
| Overall Length | 8 in |
| Handle Length | 10.02 in |
| Handle Height | 5.73 in |
| Ball Opening Size | 2.31 in |
| Valve Series | BVF1 |
