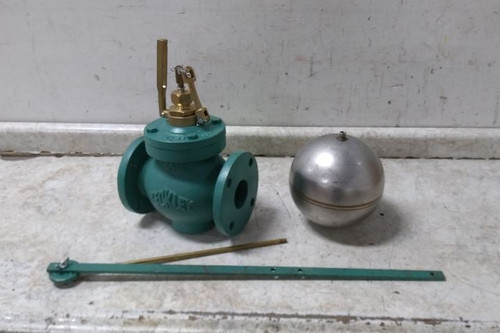

This is a Keckley float valve assembly. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to assemble/install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Float Valve Assembly |
| MFR # | 21/277FG/IB |
| Pipe Size | 2 1/2" |
| Float Size | 8" |
| Float Dia. | 8" |
| Rod Length | 18 in |
| Size | 2 1/2" |
| Nominal Valve Size | 2 1/2 in |
| Connection Size - Side 2 | 2 1/2 in |
| Float Diameter | 8 in |
| Connection Size - Side 1 | 2 1/2 in |
| Connection Type | Flanged |
| Body Material | Iron |
| Float Material | Stainless Steel |
| Style | Type 77, Globe |
| Temperature Range | 35 to 406 Degrees F |
| Mounting | Horizontal Piping |
| Service | Dead End |
| Seat | Single |
| Valve Flow - Pressure (1) | 1 psi |
| Valve Flow - Flow (2) | 600 gpm |
| Valve Material | Iron |
| Max. Pressure | 200 psi |
| Max. Temp. | 35 Degrees to 406 Degrees F |
| Rod Material | Brass |
| Rod Thread | 3/8 in -16 |
| Valve Flow - Flow (1) | 95 gpm |
| Valve Flow - Pressure (2) | 40 psi |
| Flow Rate | 600 gpm @ 100 psi, 95 gpm @50 psi |
| Seat Style | Single Seated |
| Maximum Pressure - Operating | 200 psi |
| For Media | Water |
| Operating Temperature - Maximum | 125 Degrees F |
| Arm Adjustability | Adjustable |
| Valve Body Style | Angle |
| Float Shape | Cylindrical |
| Valve Series | 77 |
