This is a Kaba E-Plex electronic keyless lock. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to assemble/install the unit to fully test it. This unit may be missing some hardware. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

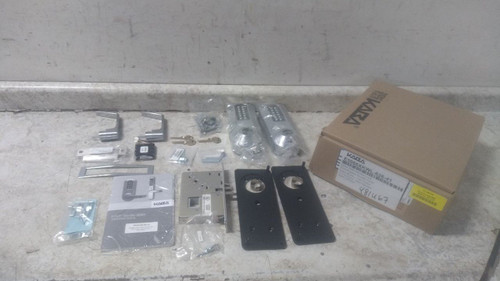

This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electronic Keyless Lock |
| Manufacturer Part Number | E5086XKWL-626-41 |
| Sub-brand | E-PLEX |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 2-1/4 in |
| Backset Distance | 2-3/4 in |
| Inside Depth | 2-1/8 in |
| Inside Height | 8-7/8 in |
| Inside Width | 3-3/16 in |
| Overall Width | 3-3/8 in |
| Overall Depth | 3-3/16 in |
| Overall Height | 8-7/8 in |
| Case Material | Solid Cast |
| Keypad Material | Solid Metal |
| Lockset Material | Solid Cast |
| Finish | Satin Chromium-Plated |
| Access Method | Keypad |
| Product Type | Electronic Keyless Lock |
| Key Override Options | Kaba 90 Keyway |
| Lockset Function | Entrance |
| Lockset Handle Type | Lever |
| Cylinder Core Type | Conventional Core Cylinder |
| Outside Locking Access | Keyway |
| Power Source | (4) AA Batteries |
| Battery Life | Up to 180,000 Cycles |
| Lockset Type | Electrical |
| Latch Front Size | 1/2 in |
| Number of Keys | 2 |
| Operation Type | Push Button |
| Temperature - Maximum | 130 °F |
| Temperature - Minimum | -31 °F |
| Network Interface | AL-DTM2 |
| Timed Entry Allowance | 2 to 20 sec |
| User Codes - Maximum | 100 |
| Event Audit Trails | 9,000 |
| Fire Rating | 3 hr |
