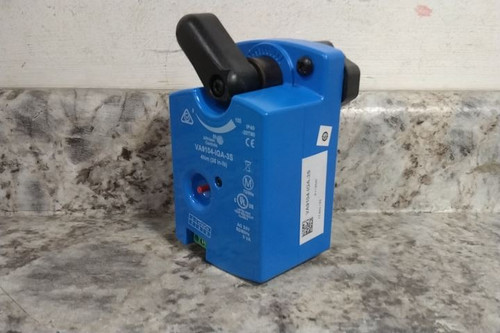

This is a Johnson Controls electric ball valve actuator. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Ball Valve Actuator |
| Manufacturer Part Number | VA9104-IGA-3S |
| Return Action | Non-Spring Return |
| Voltage | 24V AC |
| Frequency | 60 Hz |
| Compatible with Series | VG1000 |
| Compatible with Brand | Johnson Controls |
| Compatible Valve Action | Normally ClosedNormally Open |
| Compatible Valve Body Pattern | Three-WayTwo-Way |
| Control Signal | On/Off; Floating Point |
| Torque | 35 in-lb |
| Cycle Time | 60 sec |
| Number of Auxiliary Switches | 0 |
| Electrical Connection Type | Screw Terminals |
| NEMA Rating | 1 |
| Application | Air Conditioning; Heating; Ventilation |
| Operating Temperature - Minimum | -4 °F |
| Operating Temperature - Maximum | 140 °F |
| Power Consumption | 3 VA |
| Stroke Degree | 93 ° |
| Stroke Length | Not Rated |
| Housing Material | Plastic |
| Mounting Type | Direct Mount |
| Overall Height | 2-11/16 in |
| Overall Width | 2-13/16 in |
| Overall Depth | 5-1/2 in |
| Compatible with Manufacturer Model Number | VG1241AD+9T4IGA; VG1241AE+9T4IGA; VG1241AF+9T4IGA; VG1241AG+9T4IGA; VG1241AL+9T4IGA; VG1241AN+9T4IGA; VG1241BG+9T4IGA; VG1241BL+9T4IGA; VG1241BN+9T4IGA; VG1241CL+9T4IGA; VG1241CN+9T4IGA; VG1241CP+9T4IGA (Sold Separately) |
