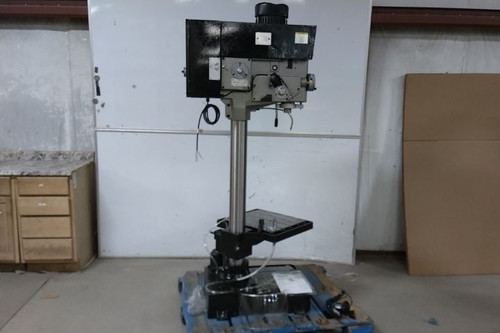

This is a Jet floor drill press. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The light is broken and the guard is broken off. This unit may be missing some hardware. There are some dents on the fan cover of the motor. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Floor Drill Press |
| Drive Type | Belt |
| Speed Control | Variable |
| Motor Voltage | 230V AC ; Three-Phase |
| Voltage | 230V AC |
| Phase | Three-Phase |
| Swing | 20 in |
| Spindle-to-Column Distance | 10-7/16 in |
| Horsepower | 2 hp |
| Spindle Speed Range | 225 RPM – 2,000 RPM |
| Minimum Spindle Speed | 225 RPM |
| Maximum Spindle Speed | 2,000 RPM |
| Current | 9.2 A |
| Drilling Capacity in Steel | 2 in |
| Spindle Travel | 6 in |
| Drill Press Application | Drilling |
| Number of Spindle Speeds | Variable |
| Application | Drilling; Tapping |
| Base Length | 27 in |
| Base Width | 19 in |
| Chuck Size | 3/4 in |
| Chuck Style | Keyed |
| Column Diameter | 4-1/2 in |
| Coolant System | Yes |
| Drilling Capacity in Cast Iron | 2-5/32 in |
| Drilling Capacity in Stainless Steel | 1-3/8 in |
| Drilling Capacity in Wood | 2-5/32 in |
| Drill Press Type | Floor Stand |
| Guard Included | Yes |
| Includes | Chuck Guard |
| Maximum Overall Height | 78-3/4 in |
| Maximum Spindle-to-Base Height | 44-11/16 in |
| Maximum Spindle-to-Table Height | 25-1/2 in |
| Number of Speeds | Variable |
| Number of T-Slots | 2 |
| Overall Length | 42-1/2 in |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Diameter | 2-61/64 in |
| Radial Arm | No |
| Speed Control Type | Mechanical Variable Speed Drive System |
| Spindle Taper | 3MT |
| Table Length | 22 in |
| Table Load Capacity | 154 lb |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Slot Width | 5/8 in |
| Table Width | 18-3/4 in |
| Tapping Capacity in Stainless Steel | 3/4 in |
| Tapping Capacity in Steel | 1 in |
| Tapping Compatible | Yes |
| Tool Weight | 847 lb |
