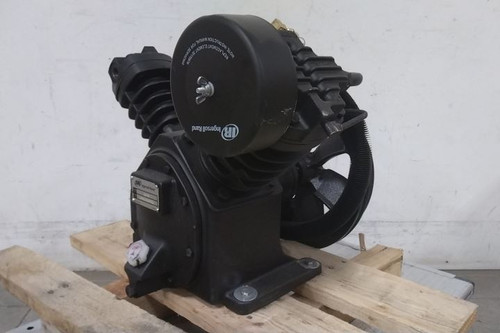

This is an Ingersoll Rand air compressor pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Air Compressor Pump |
| Manufacturer Part Number | 2475 |
| Lubrication Type | Splash Lubricated |
| Number of Stages | 2 |
| Maximum Output Power | 5 hp; 7.5 hp |
| Free Air Flow Rate @ Maximum Pressure | 24.0 cfm @ 175 psi |
| Number of Cylinders | 2 |
| Maximum Operating Pressure | 175 psi |
| Flywheel Diameter | 13-1/2 in |
| Pump Speed | 1,600 RPM |
| Duty Cycle | Continuous |
| Construction | Cast Iron |
| Groove Section | A |
| Valve Type | Finger |
| Valve Material | Stainless Steel |
| Cylinder Material | Cast Iron |
| Rotation | CW |
| Bore Diameter | 2.5 in; 4 in |
| Stroke Length | 2-3/4 in |
| Outlet Size | 0.5 in |
| Outlet Connection Type | NPT |
| Lubrication Required | Yes |
| Oil Capacity | 1.268 L |
| Overall Height | 17.18 in |
| Overall Width | 19.68 in |
| Overall Depth | 21.5 in |
| Weight | 200 lb |
| Number of Grooves | 1 |
