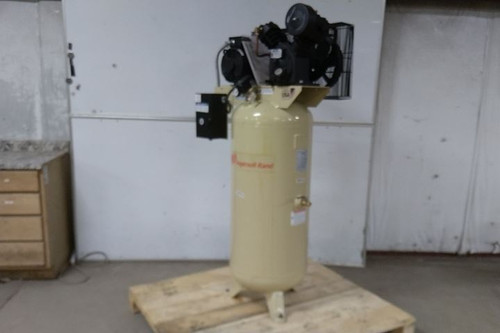

This is an Ingersoll Rand electric air compressor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The flywheel spins. The pump appears to have leaked some oil/fluid and one of the holes has been punched in the electrical box. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Air Compressor |
| Manufacturer Part Number | 2340L5-V-460/3 |
| Lubrication Type | Splash Lubricated |
| Tank Style | Vertical |
| Number of Stages | 2 |
| Output Power | 5 hp |
| Free Air Flow Rate @ Maximum Pressure | 14 cfm |
| Maximum Operating Pressure | 175 psi |
| Tank Size | 60 gal |
| Input Voltage | 460V AC |
| Phase | Three |
| Frequency | 60 Hz |
| Compressor Package Type | Base Model |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Pump Location | Top Mount |
| Pump Oil Capacity | 32 fl oz |
| Current Rating | 7.6 A |
| Maximum Speed | 1,575 RPM |
| Duty Cycle | Continuous |
| Sound Level | 85 dBA |
| Cylinder Material | Cast Iron |
| Enclosure Type | Open Dripproof |
| Enclosure Rating | NEMA 1 |
| Finish | Powder Coated |
| ASME Tank | Yes |
| Control Type | Pressure Switch |
| On Pressure Switch Setting | 135 psi |
| Off Pressure Switch Setting | 175 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Outlet Type | NPT |
| Outlet Gender | Female |
| Overall Length | 32 in |
| Overall Width | 20 in |
| Overall Height | 69 in |
| Life Expectancy | 15,000 hr |
