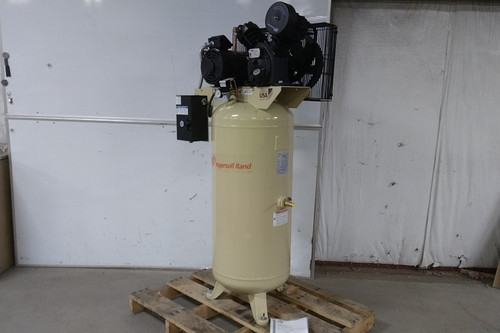

This Ingersoll Rand 2340L5-V-230/3 is a 5 HP, 60-gallon vertical two-stage electric air compressor. Built for industrial and commercial heavy-duty applications, it features a durable cast iron pump, splash lubrication, 175 PSI maximum operating pressure, and 14 CFM air flow rate. Operates on 230V AC 3-phase electrical power.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor and pulleys spin freely by hand. There are some cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Electric Air Compressor |
| Manufacturer Part Number | 2340L5-V-230/3 |
| Lubrication Type | Splash Lubricated |
| Tank Style | Vertical |
| Number of Stages | 2 |
| Output Power | 5 hp |
| Free Air Flow Rate @ Maximum Pressure | 14 cfm |
| Maximum Operating Pressure | 175 psi |
| Tank Size | 60 gal |
| Input Voltage | 230V AC |
| Phase | Three |
| Frequency | 60 Hz |
| Compressor Package Type | Base Model |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Pump Location | Top Mount |
| Pump Oil Capacity | 32 fl oz |
| Current Rating | 11.7 A |
| Maximum Speed | 1,575 RPM |
| Duty Cycle | Continuous |
| Sound Level | 85 dBA |
| Cylinder Material | Cast Iron |
| Enclosure Type | Open Dripproof |
| Enclosure Rating | NEMA 1 |
| Finish | Powder Coated |
| Control Type | Pressure Switch |
| On Pressure Switch Setting | 135 psi |
| Off Pressure Switch Setting | 175 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Outlet Type | NPT |
| Outlet Gender | Female |
| Overall Length | 33.12 in |
| Overall Width | 20 in |
| Overall Height | 69 in |
| Life Expectancy | 15,000 hr |
| Country of Origin | USA |
