The Hubbell Killark UGR1-20231QW Acceptor Series is a 20-Amp, 125-Volt AC single-gang explosion-proof receptacle assembly engineered for hazardous locations. Built with heavy-duty copper-free aluminum alloy, this unit features a factory-sealed arcing chamber, a spring-loaded flip cover, and a NEMA 5-20R receptacle configuration.
Item Inspection & Testing:
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit.

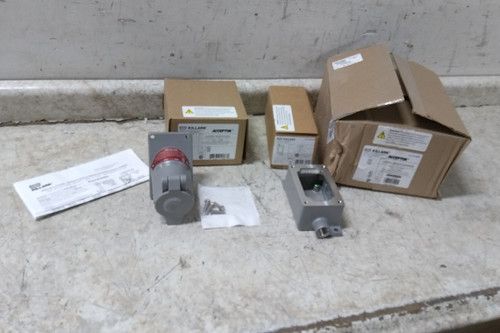

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Receptacle |
| Manufacturer Part Number | UGR1-20231QW |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| GFCI | No |
| Grounding | Grounded |
| Housing Color | Gray |
| Housing Material | Aluminum |
| Hub Type | Dead End |
| NEMA Enclosure Rating | 3; 7CD; 9FG |
| NEMA Receptacle Configuration | 5-20R |
| Number of Gangs | 1 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Receptacle Type | Single |
| Resistance Properties | Corrosion Resistant; Dust Ignition Proof; Explosion Proof |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Country of Origin | USA |
