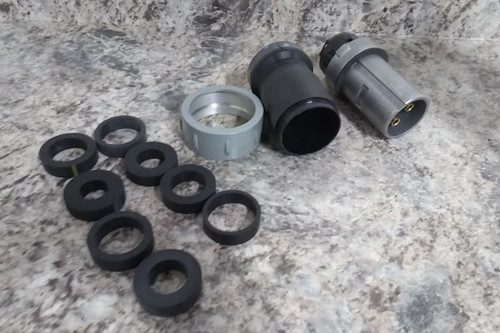

This is a Hubbell pin and sleeve plug. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It appears to be missing an end piece. There are also some cosmetic scuffs and scratches around the components. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Pin and Sleeve Plug |
| Manufacturer Part Number | HBL3100PS2W |
| Cap Type | No Cap or Cover |
| Compatible with Series | Insulgrip |
| Connection Orientation | Straight |
| Current Rating | 100 A |
| For Maximum Cable Diameter | 1.94 in |
| For Minimum Cable Diameter | 0.925 in |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Housing Color | Black/Gray |
| Housing Material | Polybutylene Terephthalate |
| IP Rating | Not Rated |
| Maximum Operating Temperature | 75 °C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40 °F |
| Minimum Wire Size | 4 AWG |
| NEMA Enclosure Rating | 4X |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Outside Diameter | 8 in |
| Overall Length | 10.9 in |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant; Moisture Resistant; Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| UL 94 Flammability Rating | V-0 |
| Voltage Rating | 600VAC |
| Wire Connection Type | Screw Terminals |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Combo Environmental Protection | 4X / Not Rated |
| Rated Voltage | 600VAC |
