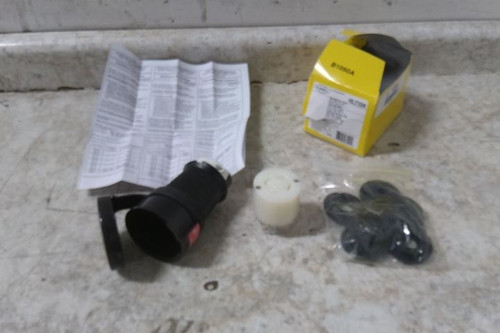

This is a Hubbell locking connector. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Locking Connector |
| Manufacturer Part Number | HBL2733SW |
| Cap Type | Press-On Cap |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Voltage Rating | 480V AC |
| Current Rating | 30 A |
| For Maximum Cable Diameter | 1.15 in |
| For Minimum Cable Diameter | 0.35 in |
| Grounding | Grounded |
| Horsepower Rating | 2 hp |
| Housing Color | Black; White |
| Housing Material | Valox |
| IP Rating | IP66 |
| Insulation Material | Thermoplastic |
| Maximum Operating Temperature | 167 °F |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40 °F |
| Minimum Wire Size | 16 AWG |
| NEMA Configuration | L16-30 |
| NEMA Enclosure Rating | 4; 4X; 12 |
| NEMA Receptacle Configuration | L16-30R |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Outside Diameter | 2.75 in |
| Overall Length | 2.75 in |
| Phase | Three |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant; Moisture Resistant; Watertight |
| Shrouded | Yes |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
