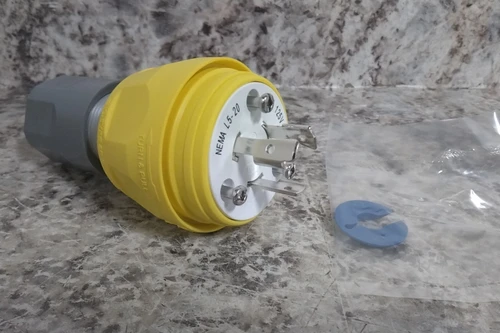

The Hubbell HBL26W47 is an industrial-grade Elastomer Watertight Twist-Lock plug engineered for demanding wet and washdown environments. Rated IP69K and UL Type 3R, 4, 4X, 6, and 6P, this NEMA L5-20P locking plug delivers a reliable 20A 125V AC connection resistant to water intrusion, chemicals, and heavy impact.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches around the components. Packaging shows light shelf wear. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Watertight Locking Plug |
| Manufacturer Part Number | HBL26W47 |
| NEMA Plug Configuration | L5-20P |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Number of Poles | 2 |
| Number of Blades | 3 |
| Polarized | Yes |
| Housing Color | Yellow |
| Shrouded | No |
| IP Rating | IP69K |
| Resistance Properties | Chemical Resistant; Impact Resistant; Watertight |
| Blade Material | Nickel-Plated Brass |
| Body Length | 2.51 in |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 0.875 in |
| For Minimum Cable Diameter | 0.375 in |
| Horsepower Rating | 1 hp |
| Housing Material | Thermoplastic Elastomer |
| Market | Industrial |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -40 °C |
| Outside Diameter | 2.51 in |
| Overall Length | 2.51 in |
