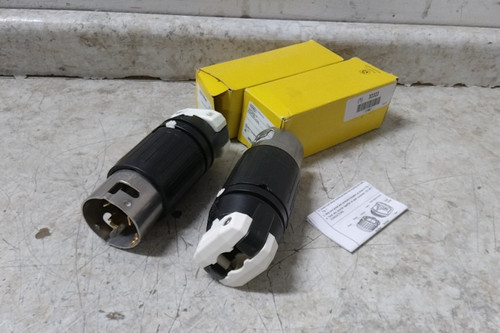

This is a package of 2 Hubbell locking plugs. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Locking Plug |
| Manufacturer Part Number | CS6365C |
| Blade Material | Brass |
| Body Length | 6.37 in |
| Connection Orientation | Straight |
| Voltage Rating | 125/250V AC |
| Current Rating | 50 A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.25 in |
| For Minimum Cable Diameter | 0.83 in |
| Grounding | Grounded |
| Housing Color | Black; White |
| Housing Material | Nylon |
| IP Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75 °C |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -40 °C |
| Minimum Wire Size | 10 AWG |
| NEMA Plug Configuration | Non-NEMA |
| Number of Blades | 4 |
| Number of Poles | 3 |
| Outside Diameter | 2.563 in |
| Overall Length | 6.37 in |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant; Impact Resistant |
| Shrouded | Yes |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
