The Honeywell BW Icon (ICON-Y-H) is a compact, fixed-life 4-gas detector designed to continuously monitor Oxygen (O2), Combustible gases (LEL), Hydrogen Sulfide (H2S), and Carbon Monoxide (CO). It features an intuitive icon-based illuminated display, Bluetooth communication, and triple alarm alerts (audible, visual, and vibrating) for reliable personnel safety monitoring in industrial and commercial environments.

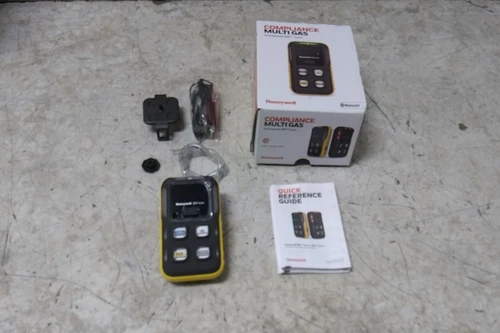

We have inspected this item and the device powers on as expected. Package notes indicate an activation deadline of October 28, 2026. Includes the detector unit, calibration cap with tubing, USB charging cable, quick reference guide, and original packaging. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Multi-Gas Detector |
| MFR # | ICON-Y-H |
| Height | 108.2 mm |
| Width | 61.5 mm |
| Overall Width | 2.44 in |
| Overall Depth | 1.7 in |
| Overall Height | 4.29 in |
| Battery Size | 3.7V |
| Gas Detected | Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, Oxygen |
| Alarm Type | Audible, Vibrating, Visual |
| Alarm Setting | Adjustable |
| Battery Life | 2 mo |
| Operating Temp. Range | -40 to 60 Degrees C (-40 to 140 Degrees F) |
| Sensor Range | O2 0 to 30.0%, CO 0 to 2000 ppm, H2S 0 to 200 ppm, LEL 0 to 100% |
| IP Rating | IP66/IP68 |
| Series | BW Icon |
| Display Screen Type | Illuminated |
| Chemical Formula | CO, H2S, O2, SO2 |
| Power Source | Battery |
| Status Indicator | LED |
| Housing Color | Yellow |
| Resolution | 1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 1 ppm, Oxygen 0.1% vol |
| Alert Type | Light, Sound, Vibration |
| Sub-Brand | BW |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Communication Protocol | Bluetooth, Wireless Mesh |
| Display Type | Digital |
| Operating Temperature - Minimum | -40 Degrees F |
| Number of Gases Detected | 4 |
| Sensor Type | Infrared |
| Operating Humidity - Minimum | 0 % |
| Data Logger | Yes |
| Operating Temperature - Maximum | 140 Degrees F |
| Visual Alert Type | Amber LED, Green LED |
| Battery Chemistry | Lithium Ion |
| Operating Humidity - Maximum | 95 % |
| Rechargeable Battery | Yes |
| For Environment | Commercial |
| Replaceable Battery | No |
| Sensor Life | 5 yr |
| Measurement Range | Carbon Monoxide (0 to 2,000 ppm), Hydrogen Sulfide (0 to 200 ppm), LEL (0 to 100%), Oxygen (0 to 30% vol) |
| Mount Type | Portable/Handheld |
| Alarm Volume Level | 95 dB |
| Includes Regulator | No |
| Includes Test Gas | No |
| Product Type | Multi-Gas Detector |
| Number of Sensors | 4 |
