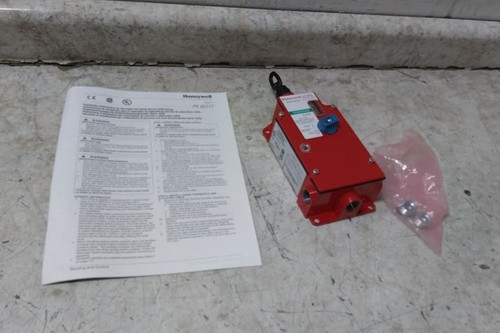

This is a Honeywell emergency cable pull switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Emergency Cable Pull Switch |
| Manufacturer Part Number | 1CPSA6A |
| Series | 1CPS |
| AC Contact Rating | 0.05 A @ 250 V |
| Action | Maintained |
| Cable Span - Maximum | 250 ft |
| Case Material | Zinc Die Cast |
| Contact Form | 2NO/2NC |
| Contact Material | Gold Alloy |
| Current | 10 A |
| DC Contact Rating | 2.5 A @ 24 V |
| Display Qty | 1 |
| IP Rating | IP67 |
| Indicator | 24V DC LED Light |
| NEMA Enclosure Rating | 1; 4; 12; 13 |
| Operating Temperature - Maximum | 176 °F |
| Operating Temperature - Minimum | -40 °F |
| Overall Depth | 2.57 in |
| Overall Width | 3.9 in |
| Product Type | Single Ended |
| Cable Connection Location | Left or Right |
| Pull Force | 40 lb |
| Reset | Rotary Knob |
| Wiring Entry | 1/2 in NPT |
