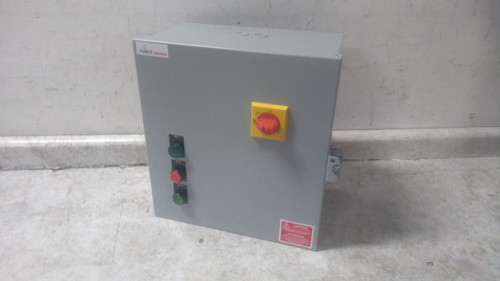

This is a Hoffman IEC combination starter. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | IEC Combination Starter |
| Manufacturer Part Number | VS-CE0204SSPT1 |
| Starter Style | IEC |
| Overload Protection Type | Thermal |
| Short Circuit Protection | Circuit Breaker |
| Reversing Capability | Non-Reversing |
| Number of Poles | 3 |
| Phase | Three |
| Max Current (AC) | 4 A |
| Minimum Overload Relay Current Setting | 2.5 A |
| Maximum Overload Relay Current Setting | 4 A |
| Trip Class | 10 |
| Control Transformer | Yes |
| Frequency | 50/60 Hz |
| Nominal Coil (Secondary) Voltage | 240V AC |
| Wire Termination Type | Screws |
| Maximum Voltage Rating | 480V AC |
| Horsepower @ Three Phase - 240V AC | 1 hp |
| Horsepower @ Three Phase - 480V AC | 2 hp |
| Auxiliary Contact Form | 1NO/1NC |
| Number of Terminals | 6 |
| Operator | Push Button |
| Operator Function | Start/Stop |
| NEMA Enclosure Rating | 1 |
| Overall Height | 15.39 in |
| Overall Width | 14.54 in |
