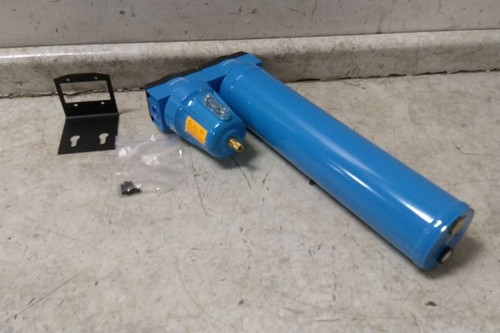

This is a Hankison membrane air dryer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Membrane Air Dryer |
| Manufacturer Part Number | HMM3-4F |
| Air Inlet Size | 1/2 in |
| Air Inlet Type | NPT |
| Maximum Flow Rate | 9.7 cfm |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 150 °F |
| Maximum Ambient Temperature | 150 °F |
| Drain Type | Automatic |
| ISO Class | 2; 3; 4; 5; 6 |
| Dew Point | 40°F |
| Overall Width | 105 mm |
| Overall Height | 19-3/4 in |
| Overall Depth | 4-1/8 in |
| Air Outlet Size | 1/2 in |
| Filter Included | Grade 5 Coalescing |
| Filtered Substance | Oil; Water |
| Finish | Powder Coated |
| Housing Material | Aluminum |
| Minimum Flow Rate | 2.18 cfm |
| Series | HMM |
| Body Material | Aluminum |
| Filter Element Compatibility | F02-B-PF/HF |
| Filter Element Life | 6 mo |
| Filter Type | Coalescing |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Weight | 3 kg |
