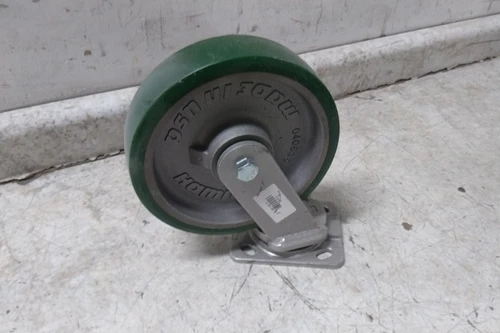

Hamilton S-WH-8DB 8" x 2" Workhorse Series Heavy-Duty Swivel Plate Caster featuring a green Duralast polyurethane tread on a durable cast iron wheel hub. Constructed with a forged steel swivel mounting plate, precision ball bearings, and a 1,500 lb load rating for industrial applications.
Inspection Notes: We have inspected this item and we do not have the capability to fully test it. The wheel rolls smoothly and swivels properly. Minor cosmetic scuffs and scratches are present along the wheel tread edges and mounting plate from storage and handling.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Standard Plate Caster |
| Caster Sub-Type | Swivel |
| Swivel Construction | Kingpin |
| Load Rating | 1500 lb |
| Wheel Dia. | 8 in |
| Wheel Width | 2 in |
| Mounting Height | 9-1/2 in |
| Wheel/Tread Material | Polyurethane |
| Wheel/Tread Hardness Rating | Firm |
| Wheel/Tread Hardness | 95 Shore A |
| Wheel/Tread Color | Green |
| Wheel Bearing Type | Precision Ball |
| Swivel Raceway Type | Single Ball |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4 in x 5 in |
| Inside Bolt Hole Spacing | 2-5/8 in x 3-5/8 in |
| Outside Bolt Hole Spacing | 3 in x 3 in |
| Mounting Bolt Dia. | 1/2 in |
| Number of Mounting Holes | 4 |
| Swivel Lock Type | No Lock Included |
| Caster Brake Type | No Brake Included |
| Frame Finish | Enamel |
| Caster Frame Material | Steel |
| Tread Shape | Standard |
| Includes Thread Guards | No |
| Wheel Core Material | Cast Iron |
| Core Color | Gray |
| Non-Marking | Yes |
| Number of Wheels | 1 |
| Application | Aerospace Tooling; All Purpose Industrial and Commercial Casters; Automotive Assembly Lines; Body Dolly Carts; Casters; Chassis Rack Carts; Engine Dollies; Material Carts |
| Mounting Plate Size & Bolt Hole Pattern | 4 in x 5 in ( B ) |
| Country of Origin | USA |
