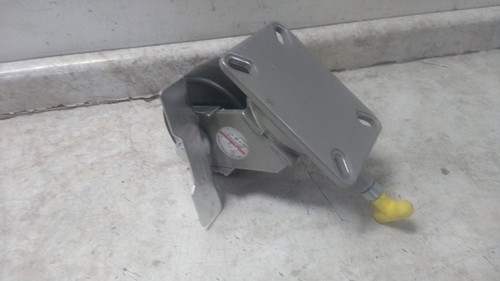

This is a Hamilton standard plate caster. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Standard Plate Caster |
| Caster Sub-Type | Swivel |
| Swivel Construction | Kingpin |
| Load Rating | 2000 lb |
| Wheel Dia. | 6 in |
| Wheel Width | 3 in |
| Mounting Height | 8 in |
| Wheel/Tread Material | Phenolic |
| Wheel/Tread Hardness Rating | Hard |
| Wheel/Tread Hardness | 90 Shore D |
| Wheel/Tread Color | Black |
| Wheel Bearing Type | Roller |
| Swivel Raceway Type | Single Ball |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5-1/4 in x 7-1/4 in |
| Inside Bolt Hole Spacing | 4-1/8 in x 6-1/8 in |
| Outside Bolt Hole Spacing | 3-3/8 in x 5-1/4 in |
| Mounting Bolt Dia. | 1/2 in |
| Number of Mounting Holes | 4 |
| Swivel Lock Type | 4-Position Directional Lock |
| Caster Brake Type | Swivel Lock with Side Pedal Brake |
| Frame Finish | Enamel |
| Caster Frame Material | Steel |
| Tread Shape | Standard |
| Includes Thread Guards | No |
| Wheel Core Material | Phenolic |
| Core Color | Black |
| Non-Marking | Yes |
| Number of Wheels | 1 |
| Application | Aerospace Tooling; All Purpose Industrial and Commercial Casters; Automotive Assembly Lines; Body Dolly Carts; Casters; Chassis Rack Carts; Engine Dollies; Material Carts |
| Mounting Plate Size & Bolt Hole Pattern | 5-1/4 in x 7-1/4 in ( A ) |
