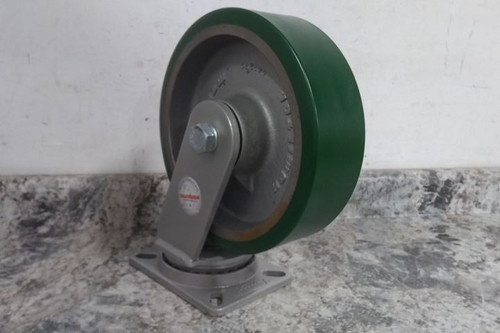

This is a Hamilton plate caster. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Plate Caster |
| Manufacturer Part Number | S-CH-13DB |
| Unit of Measurement | Inch |
| Caster Type | Swivel |
| Caster Brake Type | No Brake |
| Tread Material | Polyurethane |
| Wheel Diameter | 10 in |
| Wheel Width | 3 in |
| Mounting Bolt Diameter | 1/2 in |
| Number of Wheels | 1 |
| Duty Rating | Heavy Duty |
| Load Capacity | 3,000 lb |
| Caster Frame Material | Steel |
| Mounting Height | 12-1/2 in |
| Wheel Bearing Type | Ball |
| Non-Marking | Yes |
| Tread Shape | Standard |
| Includes Thread Guards | No |
| Number of Mounting Holes | 4 |
| Wheel Core Material | Iron |
| Frame Finish | Enamel |
| Wheel Hardness Rating | 95 Shore A |
| Wheel Hardness | Firm |
| Core Color | Gray |
| Swivel Construction | Kingpin |
| Wheel/Tread Color | Green |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Overall Wheel Width | 3 in |
| Mounting Hole Type | Slot |
| Mounting Plate Slot Angle | Angled Inward |
| Mounting Plate Length | 7-1/4 in |
| Mounting Plate Shape | Rectangle |
| For Axle Diameter | 3/4 in |
| Application | Aerospace Tooling; All Purpose Industrial and Commercial Casters; Automotive Assembly Lines; Body Dolly Carts; Chassis Rack Carts; Engine Dollies; Material Carts |
| For Surface Type | Concrete |
| Mounting Plate Thickness | 3/8 in |
| Wheel Core Type | Solid |
| Wheel Type | Flat-Free |
| Inside Slot Spacing - Length | 5.25 in |
| Inside Slot Spacing - Width | 3.375 in |
| Outside Slot Spacing - Length | 6.125 in |
| Outside Slot Spacing - Width | 4.125 in |
| Mounting Plate Width | 5-1/4 in |
