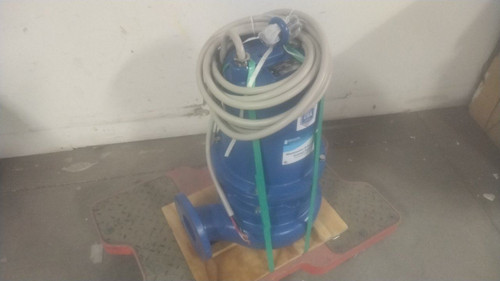

This is a Goulds Water Technology sewage ejector pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Sewage Ejector Pump |
| Series | WS-D3 |
| Manufacturer Part Number | WS1534D3 |
| For Media Type | Sewage Water |
| Power Source | Corded Electric |
| Phase | Three |
| Horsepower | 1-1/2 hp |
| Motor Speed | 1,725 RPM |
| Rated Voltage | 460V AC |
| Frequency | 60 Hz |
| Current | 5.00 A |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material | Silicon |
| Flow Rate @ 10' of Head | 300 gpm |
| Max. Media Temp. | 104 °F |
| Max. Head | 38 ft |
| Max. Dia. Solids | 2-1/2 in |
| Switch | Not Included |
| Duty Cycle | Continuous |
| Cord Length | 20 ft |
| Shaft Seal Type | Single Mechanical |
| Discharge | 3 in Flange |
| Discharge Orientation | Vertical |
| Requires Control Panel | Control Panel Required |
| Body Dia. | 15-1/2 in |
| Width at Widest Point | 12-1/2 in |
| Overall Height | 27-5/8 in |
