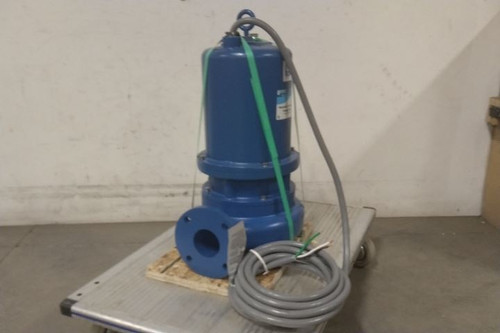

This is a Goulds Water Technology sewage ejector pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit as well as some slight paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Sewage Ejector Pump |
| Manufacturer Part Number | WS5012D3 |
| Switch Actuation | No Switch Included |
| Switch Electrical Connection | No Switch Included |
| HP | 5 |
| RPM | 1,725 RPM |
| Rated Voltage | 230V AC |
| Amps | 26.50 A |
| Phase - Pumps | 1 |
| Motor Type | Capacitor Start |
| Body Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material - Pumps | Silicone Carbide |
| Flow Rate @ 15 Ft. of Head | 470 gpm |
| Flow Rate @ 20 Ft. of Head | 435 gpm |
| Flow Rate @ 40 Ft. of Head | 280 gpm |
| Flow Rate @ 60 Ft. of Head | 60 gpm |
| Max. Diameter Solids | 2-1/2 in |
| Body Dia. | 15-1/2 in |
| Overall Height | 27-13/21 in |
| Cord Length | 20 ft |
| Discharge | 3 in Flanged |
| Max. Head | 64 ft |
| Duty Cycle | Continuous |
| Thermal Protection | No |
