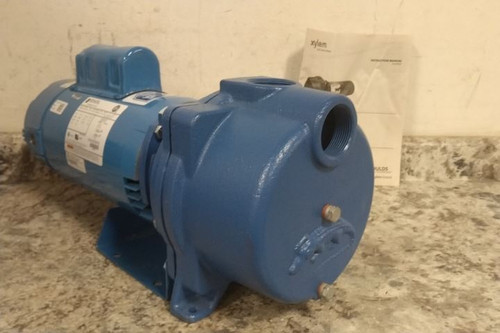

This is a Goulds Water Technology sprinkler pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit as well as some slight paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Sprinkler Pump |
| Manufacturer Part Number | GT30 |
| Priming | Self-Priming |
| Pump Housing Material | Cast Iron |
| Horsepower | 3 hp |
| RPM (Maximum) | 3450 RPM |
| Nameplate Voltage | 230VAC |
| Frequency | 60 Hz |
| Phase | Single |
| Maximum Suction Lift | 25 ft |
| Flow Rate @ 10 psi | 110 gpm |
| Flow Rate @ 20 psi | 105 gpm |
| Flow Rate @ 30 psi | 92 gpm |
| Flow Rate @ 40 psi | 73 gpm |
| Flow Rate @ 50 psi | 46 gpm |
| Shut Off Pressure | 56 psi |
| Feet of Head (Maximum) | 129 ft |
| Intake and Discharge Size | 1-1/2 in , 1-1/2 in |
| Compatible Intake Pipe Size | 1-1/2 in |
| Compatible Discharge Pipe Size | 1-1/2 in |
| Connection Type | NPT |
| Motor Enclosure | Open Dripproof |
| Case Pressure (Maximum) | 125 psi |
| Flow Rate @ 15 psi | 109 gpm |
| Overall Height | 9.25 in |
| Seal Material | Buna-N; Carbon; Ceramic |
| Wetted Material | Buna-N; Carbon; Cast Iron; Ceramic; Lexan; Noryl |
| Thermal Overload Protection | Yes |
| Flow Rate (Maximum) | 105 gpm |
| Flow Rate (Minimum) | 50 gpm |
| Compatible with Media Type | Clear Water Only |
| Media Temperature (Maximum) | 140 °F |
| Pumping Application | Air Conditioning Systems; De-Watering; Heat Pumps; Irrigation; Lawn Sprinkling; Water Transfer |
| Series | GT |
| Solid Diameter (Maximum) | 0.06 in |
| Feet of Head (Minimum) | 5 ft |
| For Use With Potable Systems | No |
| Specific Gravity (Maximum) | 1 |
| Overall Length | 21.34 in |
| Overall Width | 8.25 in |
| Best Efficiency Flow | 70 gpm |
| Best Efficiency Head | 102 ft of head |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Impeller Material | Noryl |
