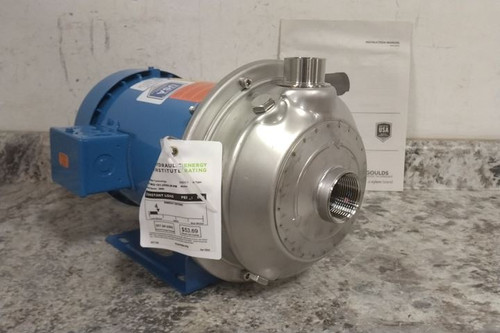

This is a Goulds Water Technology centrifugal pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are trace amounts of water inside which appears to be from factory testing. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Centrifugal Pump |
| Manufacturer Part Number | 100MS1D5D4 |
| Pump Housing Material | Stainless Steel |
| Phase | Three |
| Horsepower | 3/4 hp |
| Nameplate Voltage | 208-230/460V AC |
| Maximum Flow Rate @ 50 Feet of Head | 43 gpm |
| Maximum Flow Rate @ 60 Feet of Head | 36 gpm |
| Maximum Flow Rate @ 70 Feet of Head | 30 gpm |
| Maximum Flow Rate @ 80 Feet of Head | 22 gpm |
| Maximum Flow Rate @ 90 Feet of Head | 12 gpm |
| Maximum Feet of Head | 96 ft |
| Connection Type | NPT |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Compatible Intake Pipe Size | 1-1/4 in |
| Compatible Discharge Pipe Size | 1 in |
| Impeller Material | Stainless Steel |
| Solid Diameter (Maximum) | 0.06 in |
| Seal Material | Carbon; Silicon Carbide; Stainless Steel; Viton |
| Wetted Material | 316L Stainless Steel; Carbon; Silicon Carbide; Viton |
| RPM (Maximum) | 3,500 RPM |
| Specific Gravity (Maximum) | 1 |
| Shut Off Pressure | 75 psi |
| Compatible with Media Type | Water |
| Priming | Manual |
| For Use With Potable Systems | No |
| Best Efficiency Head | 68 ft |
| Discharge Type | NPT |
| Frequency | 60 Hz |
| Best Efficiency Flow | 31 gpm |
| Duty Cycle | Continuous |
| Overall Height | 8.6 in |
| Overall Length | 14.7 in |
| Overall Width | 8.5 in |
