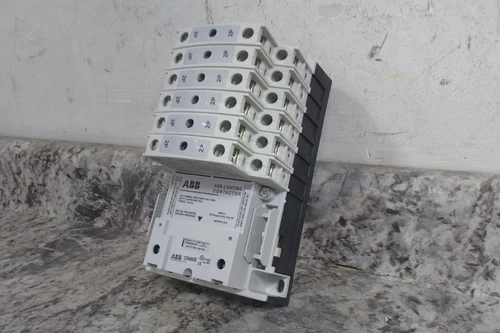

This ABB CR463LD0ANA electrically held lighting contactor is a 12-pole, 30-amp unit configured for 277V AC coil operation. Designed for commercial and industrial lighting control applications, it features 12 normally open (12NO) main poles suitable for handling fluorescent, LED, ballast, tungsten, and general resistive lighting loads.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Lighting Magnetic Contactor |
| Manufacturer Part Number | CR463LD0ANA |
| Series | CR460 Series |
| NEMA Enclosure Rating | No Enclosure |
| Reversing Capability | Non-Reversing |
| Number of Poles | 12 |
| Main Pole Contact Form | 12NO |
| Lighting Contactor Style | Electrically Held Lighting Contactor |
| Nominal Coil Voltage @ 60Hz | 277V AC |
| Frequency | 50/60 Hz |
| Full Load Current - Inductive | 30 A |
| Lighting Compatability | Flourescent Lighting; LED Lighting |
| Fluorescent Lighting Current Rating | 30 A |
| Incandescent Lighting Current Rating | 20 A |
| LED Lighting Current Rating | 10 A |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| Horsepower @ Single Phase - 240V AC | 2 hp |
| Horsepower @ Three Phase - 208V AC | 3 hp |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ Three Phase - 600V AC | 15 hp |
| Overall Depth | 3.9 in |
| Overall Height | 7.4 in |
| Overall Width | 4.2 in |
| Minimum Operating Temperature | -13 °F |
| Maximum Operating Temperature | 104 °F |
| Country of Origin | USA |
