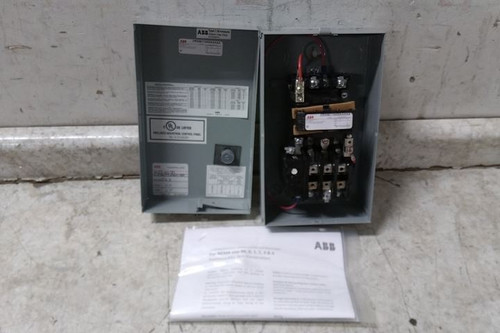

This is an ABB NEMA magnetic motor starter. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | NEMA Magnetic Motor Starter |
| MFR # | CR306C00400XAAAAG |
| NEMA Size | 1 |
| Mounting Hole Distance - Width | 2 in |
| Mounting Hole Distance - Height | 6.5 in |
| Overall Width | 3.71 in |
| Overall Depth | 3.94 in |
| Overall Height | 7 in |
| Auxiliary Contact Form | 1NO |
| Coil Voltage | 480VAC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Number of Auxillary Contacts | 1 |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 1 Phase - 230V | 3 hp |
| Maximum Overload Relay Current Setting | 13.5 A |
| Horsepower @ Three Phase - 240V AC | 1 1/2 hp |
| Maximum Voltage Rating | 480V AC |
| Starter Style | NEMA |
| Current AC | 27 A |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Mounting Style | DIN Rail |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Maximum Operating Temperature | 158 Degrees F |
| Overload Protection Type | Electronic |
| Resistance Properties | Weld Resistant |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Includes Auxiliary Contacts | Yes |
| Minimum Operating Temperature | -4 Degrees F |
| Frequency | 50/60 Hz |
| Series | CR306 |
| Horsepower @ Three Phase - 208V AC | 7 1/2 hp |
| Minimum Overload Relay Current Setting | 6.5 A |
| NEMA Enclosure Rating | No Enclosure |
