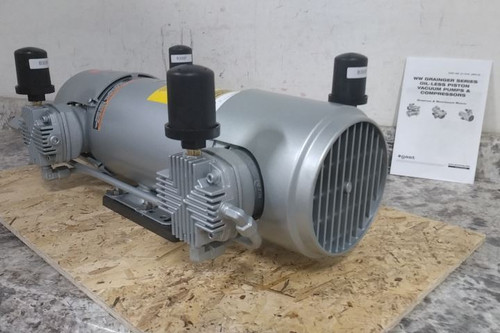

This is a Gast piston air compressor/vacuum pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Piston Air Compressor/Vacuum Pump |
| Manufacturer Part Number | 8HDM-251-M853 |
| Tank Style | Tankless |
| Control Type | Pressure Switch |
| Current Rating | 6.6 A |
| Cylinder Material | Aluminum |
| Duty Cycle | Continuous |
| Electrical Connection | Wired Leads |
| Finish | Paint |
| Free Air Flow Rate | 11 cfm |
| Frequency | 60 Hz |
| Inlet Size | 3/8 in |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 104 °F |
| Maximum Speed | 1,725 RPM |
| Minimum Operating Temperature | 32 °F |
| Motor Type | Open Drip Proof |
| Number of Cylinders | 4 |
| Outlet Size | 3/8 in |
| Outlet Type | NPT |
| Output Power | 2 hp |
| Overall Height | 8.75 in |
| Overall Length | 22.375 in |
| Overall Width | 12.375 in |
| Phase | Three |
| Piston Type | Reciprocating |
| Power Source | Corded Electric |
| Pump Type | Piston |
| Sound Level | 74 dBA |
| Thermal Protection | Automatic Reset |
| Valve Material | Stainless Steel |
| Voltage | 230/460V AC |
