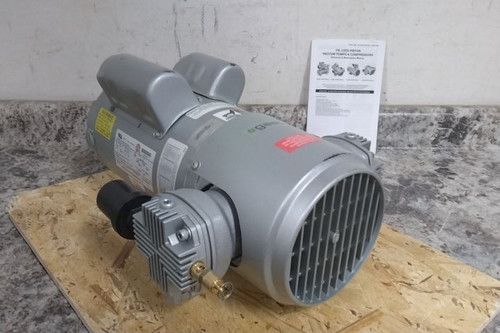

This is a Gast piston air compressor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The capacitor covers have some dents. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Piston Air Compressor |
| Manufacturer Part Number | 6HCA-10-M616NEX |
| Tank Style | Tankless |
| Compressor/Pump Enclosure Material | Aluminum/Plastic |
| Control Type | Manual |
| Current Rating | 8.7 A |
| Cylinder Material | Aluminum |
| Duty Cycle | Continuous |
| Electrical Connection | Spade Terminal |
| Enclosure Rating | IP20 |
| Enclosure Type | Clean Dust Free |
| Engine Enclosure Material | Steel |
| Exhaust Location | Front |
| Finish | Painted |
| Free Air Flow Rate | 5.35 cfm |
| Frequency | 60 Hz |
| Inlet Gender | Female |
| Inlet Size | 1/4 in |
| Inlet Type | NPT |
| Life Expectancy | 16,000 hr |
| Lubrication Type | Oilless |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 104 °F |
| Maximum Speed | 1,725 RPM |
| Minimum Operating Temperature | 41 °F |
| Motor Type | Capacitor Start |
| Mounting Hole Diameter | 7/20 in |
| Mounting Style | Thru-Bolt |
| Number of Cylinders | 2 |
| Outlet Gender | Female |
| Outlet Size | 1/4 in |
| Outlet Type | NPT |
| Output Power | 1 hp |
| Overall Height | 8.42 in |
| Overall Length | 15.68 in |
| Overall Width | 12.29 in |
| Phase | Single |
| Piston Type | Reciprocating |
| Power Source | Corded Electric |
| Pump Type | Piston |
| Sound Level | 81 dBA |
| Standards | NFPA 13 |
| Stroke Length | 3/4 in |
| Thermal Protection | Yes |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
| Voltage | 115/230V AC |
| Series | Gast |
