This Fluke FLUKE-700GA27 is a high-precision digital test pressure gauge designed for accurate measurement across a range of 0 to 300 PSIA (20 bar / 2000 kPa). Featuring ±0.05% accuracy, a clear backlit digital display, a rugged cast zinc aluminum housing, and a 1/4-inch NPT male connection, it delivers reliable performance for hydraulic and pneumatic testing and calibration applications.
We have inspected this item and it powers on. We do not have the capability to test the unit any further. There are some slight cosmetic scuffs and scratches throughout the unit.

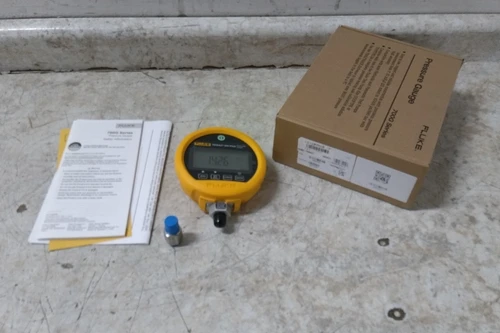

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Digital Test Pressure Gauge |
| Manufacturer Part Number | FLUKE-700GA27 |
| Accuracy | ±0.05% |
| Gauge Case Material | Cast Zinc Aluminum |
| IP/NEMA Rating | Not Rated |
| Nominal Dial Size | 3-3/4 in |
| Primary Range | 0 to 300 |
| Wetted Parts Material | Stainless Steel |
| Process Connection Gender | Male |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Compatible Process Media | Any Clean Dry Non-Corrosive Gas; Any Liquids or Gases Compatible With 316 Stainless Steel; Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel |
| Pressure Gauge Type | Test Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Units | psi |
| Series | 700G |
| Accuracy Grade Gauge Type | Process |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range | -10° to 55°C; 14° to 131°F |
| Application | Hydraulics; Pneumatics |
| Auto-Shutoff | Yes |
| Auto-Shutoff Time | 1 min; 30 min |
| Backlit Screen | Yes |
| Bar Graph | 20 Segments |
| Battery Run Time | 1,500 hr |
| Battery Type | (3) AA Batteries |
| Blowout Safety Back | No |
| Burst Pressure | 1,200 psi |
| Case Color | Yellow |
| Case Construction | Rugged |
| Case Diameter | 3.75 in |
| Case Shape | Round |
| Compatible Brand and Series | Fluke 700 Series |
| Compatible Manufacturer Model Number | 700HTPK; 700PTPK (Sold Separately) |
| Digit Height | 0.65 in |
| Display Range | 0 to 20 bar; 0 to 300 psi |
| Display Resolution | 0.01 psi |
| Display Screen Type | LCD |
| Display Units | bar; psi |
| Hazardous Location Rating | Not Rated |
| Includes Batteries | No |
| Includes Mounting Hardware | No |
| Includes Rubber Boot | No |
| Languages | English |
| Low Battery Indicator | Yes |
| Memory Storage Capacity | 8493 Readings |
| Mounting Type | Stem-Mount |
| Non-Sparking | No |
| Number of Digits | 5 |
| Panel-Mountable | No |
| Peak Hold | No |
| Power Source | Battery |
| Process Temperature Range | -14° to 131°F |
| Socket Material | Stainless Steel |
| Case Material | Aluminum |
| Connection Location | Bottom |
| Gauge Wetted Parts | Stainless Steel |
| Pressure Range | 0 to 300 psi |
| Process Connection | 1/4 in NPT Male |
| Process Connection Location | Bottom |
| Weatherproof | No |
