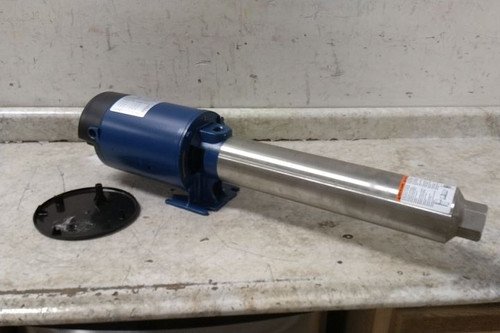

This is a Flint & Walling booster pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The back cover is cracked/broken and will need to be replaced. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Booster Pump |
| Manufacturer Part Number | PB1016S153 |
| Pump Housing Material | Stainless Steel |
| Horsepower | 1-1/2 hp |
| RPM (Maximum) | 3,450 RPM |
| Phase | Three |
| Motor Enclosure | Open Dripproof |
| Nameplate Voltage | 208-230/460V AC |
| Flow Rate @ 20 psi | 16 gpm |
| Flow Rate @ 30 psi | 15.5 gpm |
| Flow Rate @ 40 psi | 15 gpm |
| Flow Rate @ 50 psi | 14.5 gpm |
| Flow Rate @ 60 psi | 14.1 gpm |
| Flow Rate @ 70 psi | 13.5 gpm |
| Flow Rate @ 80 psi | 13.1 gpm |
| Flow Rate @ 90 psi | 13 gpm |
| Flow Rate @ 100 psi | 12.1 gpm |
| Shut Off Pressure | 212 psi |
| Intake and Discharge Size | 3/4 in , 3/4 in |
| Connection Type | NPT |
| Mounting Orientation | Horizontal |
| For Use With Potable Systems | Yes |
| Number of Stages | 16 |
| Compatible Intake Pipe Size | 3/4 in |
| Compatible Discharge Pipe Size | 3/4 in |
| Discharge Type | NPT |
| Case Pressure (Maximum) | 300 psi |
| Overall Height | 9 in |
| Overall Length | 29.75 in |
| Impeller Material | Noryl |
| Overall Width | 6.5 in |
| Motor Ambient Temperature (Maximum) | 149 °F |
| Media Temperature (Minimum) | 34 °F |
| Amps | 5.7/2.85 A |
| Wetted Material | 304 Stainless Steel; 316 Stainless Steel; Bronze; Carbon; Ceramic; Noryl; Viton |
| Compatible with Media Type | Clear Water Only |
| Seal Material | Carbon; Ceramic; Stainless Steel; Viton |
| Media Temperature (Maximum) | 140 °F |
| Pumping Application | Booster Service; General Purpose; Jockey Pump; Pressure Cleaning; Reverse Osmosis; Spray or Mist Systems; Water Circulation |
| Motor Ambient Temperature (Minimum) | 65 °F |
| Duty Cycle | Continuous |
| Flow Rate @ 160 psi | 8.2 gpm |
| Flow Rate @ 15 psi | 16 gpm |
| Flow Rate @ 120 psi | 11 gpm |
| Flow Rate @ 140 psi | 9.8 gpm |
| Flow Rate @ 180 psi | 6.6 gpm |
| Flow Rate @ 200 psi | 4.3 gpm |
| Suction Lift (Maximum) | 0 ft |
| Priming | Manual |
| Series | PB |
| Solid Diameter (Maximum) | 0 in |
