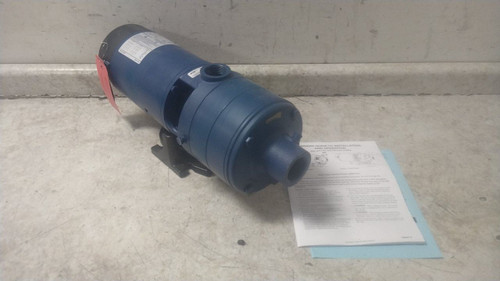

This is a Flint & Walling booster pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Booster Pump |
| Manufacturer Part Number | CJ101C203AB |
| Series | CJ101 |
| For Media Type | Clear Water |
| Power Source | Corded Electric |
| Phase | Three |
| Voltage | 208-230/460V AC |
| Horsepower | 2 hp |
| Casing Material | Cast Iron |
| Impeller Material | Brass |
| Seal Material | Buna-N/Carbon/Silicon Carbide/Stainless Steel |
| Best Efficiency Flow | 34 gpm |
| Best Efficiency Head | 145 ft |
| Max Flow Rate | 51 gpm |
| Flow Rate @ 10 psi | 48 gpm |
| Flow Rate @ 20 psi | 46 gpm |
| Flow Rate @ 30 psi | 44 gpm |
| Flow Rate @ 40 psi | 41 gpm |
| Flow Rate @ 50 psi | 37 gpm |
| Flow Rate @ 60 psi | 33 gpm |
| Flow Rate @ 70 psi | 30 gpm |
| Flow Rate @ 80 psi | 23 gpm |
| Flow Rate @ 90 psi | 15 gpm |
| Flow Rate @ 100 psi | 0 gpm |
| Flow Rate @ 120 psi | 0 gpm |
| Flow Rate - Minimum | 2 gpm |
| Max. Head | 225 ft |
| Feet of Head - Minimum | 24 ft |
| Suction Lift (Maximum) | 25 ft |
| Max. Dia. Solids | 0 in |
| Shut Off Pressure | 98 psi |
| Case Pressure (Maximum) | 160 psi |
| Pressure Boost (Max) | 95 psi |
| Media Temperature (Minimum) | 34 °F |
| Max. Media Temp. | 200 °F |
| Stages | 3 |
| Mounting Orientation | Horizontal |
| Electrical Connection Type | Hardwired |
| Motor Enclosure | Open Drip Proof, ODP |
| Motor Design | Capacitor-Start |
| Motor Frame Designation | 56J |
| RPM | 3,450 RPM |
| Motor Thermal Protection | Auto |
| Motor Ambient Temperature (Minimum) | 32 °F |
| Motor Ambient Temperature (Maximum) | 149 °F |
| Duty Cycle | Continuous |
| Inlet | 1-1/2 in FNPT |
| Discharge | 1-1/4 in FNPT |
| Impeller Design | Closed |
| Overall Length | 21.38 in |
| Overall Width | 7 in |
| Overall Height | 9.25 in |
| Application | Boosting; Circulating |
| Installation | Floor Standing |
| Pump Technology | Centrifugal |
| Priming | Manual |
| For Use with Systems | No |
| Frequency | 60 Hz |
| For Water System Type | Non-Potable Water |
