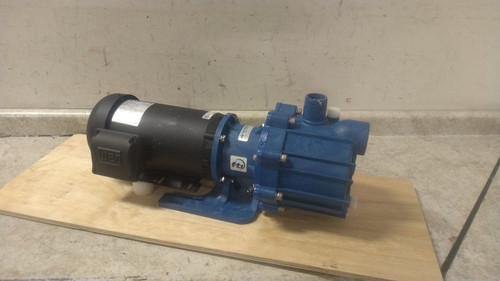

This is a Finish Thompson magnetic drive pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Magnetic Drive Pump |
| Manufacturer Part Number | SP15P-M209 |
| Bearing Type | Radial; Thrust |
| Chemical Compatibility | Deionized Water |
| Discharge Pipe Size | 1-1/2 in |
| Discharge Pipe Type | MNPT |
| Feet of Head (Maximum) | 90 ft |
| Flow Rate @ 15 ft of Head (Maximum) | 120 gpm |
| Flow Rate @ 18 ft of Head (Maximum) | 120 gpm |
| Flow Rate @ 24 ft of Head (Maximum) | 120 gpm |
| Flow Rate @ 3 ft of Head (Maximum) | 120 gpm |
| Flow Rate @ 40 ft of Head (Maximum) | 110 gpm |
| Flow Rate @ 50 ft of Head (Maximum) | 105 gpm |
| Flow Rate @ 6 ft of Head (Maximum) | 120 gpm |
| Flow Rate @ 9 ft of Head (Maximum) | 120 gpm |
| Full Load Current | 8-7.6/3.8 A |
| Gasket Material | Viton |
| Horsepower (Maximum) | 3 hp |
| Housing Material | Polypropylene |
| Impeller Material | Polypropylene |
| Intake Pipe Size | 1-1/2 in |
| Intake Pipe Type | FNPT |
| Media Temperature (Maximum) | 180 °F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Speed (Maximum) | 3,450 RPM |
| Motor Type | Induction |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 208-230/460V AC |
| Operating Pressure (Maximum) | 39 psi |
| Overall Height | 11.1 in |
| Overall Length | 24.6 in |
| Overall Width | 9.7 in |
| Phase | Three |
| Priming | Self-Priming |
| Specific Gravity (Maximum) | 1.8 |
| Viscosity (Maximum) | 50 cps |
| Discharge Port | 1-1/2 in MNPT |
| Suction Port | 1-1/2 in FNPT |
| Series | SP15 |
