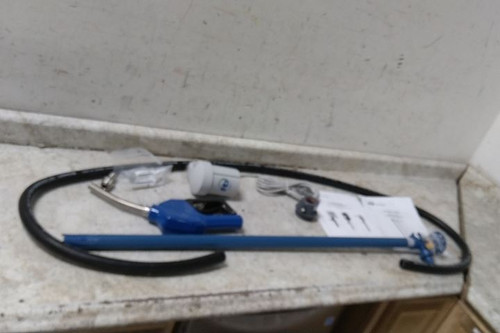

This is a Finish Thompson electric drum pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to assemble the unit to test it any further. There are some cosmetic scuffs and scratches around the components. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Drum Pump |
| Manufacturer Part Number | EFP-40 & S1 DEF Kit |
| Power Source | Corded Electric |
| Rated Voltage | 115 V AC |
| HP | 1/3 hp |
| Full Load Current | 2 A |
| Frequency | 60 Hz |
| Motor Speed | 14,000 RPM |
| Thermal Protection | No |
| Max. Flow Rate | 5 gpm |
| Max. Head | 20 ft |
| Max. Head Pressure | 8 psi |
| Max. Outlet Pressure | 8.7 psi |
| Max. Viscosity | 300 cps |
| Min. Fluid Temp. | 0 °F |
| Max. Fluid Temp. | 150 °F |
| Housing Material | Polypropylene |
| Hose Length | 8 ft |
| Hose Inside Diameter | 3/4 in |
| Hose Outside Diameter | 1 in |
| Hose Cover Material | EPDM |
| Hose Tube Material | EPDM |
| Nozzle Operation | Manual |
| Nozzle Material | FKM/Stainless Steel |
| Spout Length | 1 in |
| Spout Material | Polypropylene |
| Spout Discharge Size | 3/4 in |
| Spout Connection Type | Hose Barb |
| Suction Tube Length | 40 in |
| Suction Tube OD | 1-1/4 in |
| Suction Tube ID | 1-1/4 in |
| Suction Tube Material | Polypropylene |
| For Container Size | 55 gal |
| For Container Type | Drum |
| Adapter Connection Diameter | 2 in |
| Wetted Materials | 316 Stainless Steel/FKM/Polypropylene/PTFE |
| Pump Connection OD | 1-1/4 in |
| Standards | QPS |
| Pump Connection ID | 1-1/4 in |
| Pump Connection Type | Smooth Bore |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Outlet ID | 3/4 in |
| Discharge Tube Outlet OD | 1 in |
| Self-Priming | Yes |
| Runs Dry | No |
| Seal Material | Fluoroelastomer |
| Variable Speed | No |
| Plug Type | NEMA 5-15 |
| Adapter Material | PVC |
| Adapter Connection Standard | Smooth Bore |
| Height Above Container | 8-5/8 in |
| Overall Length | 49 in |
| Cord Length | 12 ft |
| Noise Level | 74 dB |
| Phase | Single |
| Pump Technology | Centrifugal |
| Static Protection | Not Groundable |
| Nominal Voltage | 120V AC |
| Duty Cycle | Continuous |
| Meter Type Included | No Meter Included |
| Mount Type | Bung |
| Nozzle Fluid Compatibility | DEF |
| Container Cover Type Included | No Cover Included |
| Hazardous Location Class | Not Rated |
| Chemical Compatibility | Acetic Acid 20%; Acetic Acid 80%; Ammonium Hydroxide; Antifreeze Coolant; Calcium Chloride; Citric Acid 50%; DEF; Deionized Water; Ethylene Glycol; Formic Acid; Fresh Water; Phosphoric Acid 40% Solution; Potassium Hydroxide 50%; Salt Water; Sodium Bicarbonate 10%; Sodium Bisulfate; Sodium Bisulfite; Sodium Hydroxide 20%; Sodium Hydroxide 50%; Sodium Hydroxide 80% |
| Motor Enclosure Design | Open Drip Proof |
| Includes Follower Plate | No Follower Plate Included |
| Discharge Hose | 3/4 in x 8 ft |
| Nozzle Type | Manual |
| Adapter Type | 2 in Smooth Bore |
| Meter | Not Included |
| Pump Connection | 1-1/4 in Smooth Bore |
| Pump Kit Type | Pump with Discharge Hose & Nozzle |
