The Finish Thompson PFP-40 (P/N DPFP006) is a high-performance 40-inch polypropylene sealless drum pump tube designed for transferring corrosive fluids, acids, caustics, and chemical solutions from 30- and 55-gallon drums or pails. It features a 2-inch polypropylene outer tube, 1-inch hose barb discharge outlet, corrosion-resistant Alloy 625 inner drive shaft, FKM O-rings, and a double-suction impeller capable of providing up to 40 GPM flow and 80 feet of head when paired with a compatible drive motor (motor sold separately).
We have inspected this item and we do not have the capability to install the unit to fully test it. The shaft spins freely and smoothly by hand. There are some cosmetic scuffs and scratches throughout the unit.

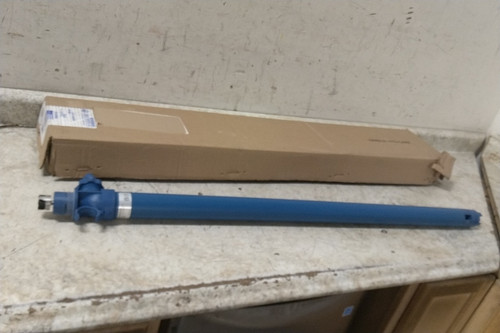

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Drum Pump Tube |
| Manufacturer Part Number | DPFP006 |
| Suction Tube Material | Polypropylene |
| Suction Tube Length | 40 in |
| Max. Flow Rate | 40 gpm |
| Max. Viscosity | 2000 CPS |
| Seal Material | FKM |
| Suction Tube ID | 2 in |
| Suction Tube OD | 1-3/16 in |
| Discharge Tube Outlet ID | 1 in |
| Discharge Tube Outlet OD | 1-7/16 in |
| Discharge Connection Type | Hose Barb |
| Overall Length | 42 in |
| For Container Size | 30 gal; 55 gal |
| For Container Type | Drum; Pail |
| Min. Fluid Temp. | 35 °F |
| Max. Fluid Temp. | 160 °F |
| Max. Head | 80 ft |
| Max. Head Pressure | 34.6 psi |
| Self-Priming | Yes |
| Wetted Materials | Polypropylene; FKM; Alloy 625; PTFE |
| For Use With | PF Series Motors |
| Country of Origin | USA |
| Model | PFP40 |
