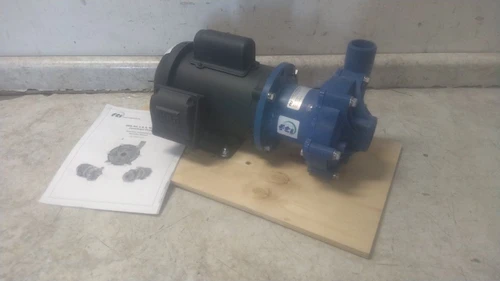

This is a Finish Thompson magnetic drive pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Magnetic Drive Pump |
| Manufacturer Part Number | DB7P-M226 |
| Bearing Type | Radial; Thrust |
| Chemical Compatibility | Deionized Water |
| Discharge Pipe Size | 1-1/2 in |
| Discharge Pipe Type | MNPT |
| Max. ft. of Head | 33 ft |
| Max. Flow Rate @ 9 ft of Head | 69 gpm |
| Max. Flow Rate @ 6 ft of Head | 69 gpm |
| Full Load Current | 1.7-1.65/0.825 A |
| Max. Flow Rate @ 3 ft of Head | 69 gpm |
| Max. Flow Rate @ 24 ft of Head | 50 gpm |
| Max. Flow Rate @ 18 ft of Head | 58 gpm |
| Max. Flow Rate @ 15 ft of Head | 64 gpm |
| Gasket Material | Viton |
| Housing Material | Polypropylene |
| Horsepower | 1/2 hp |
| Impeller Material | Polypropylene |
| Intake Pipe Size | 1-1/2 in |
| Intake Pipe Type | FNPT |
| Max. Fluid Temperature | 180 °F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Max. Viscosity | 100 cps |
| Max. Discharge Pressure | 14.2 psi |
| Series | DB7 |
| Priming | Manual |
| Phase | Single |
| Overall Width | 7.5 in |
| Overall Length | 17.3 in |
| Overall Height | 8.3 in |
| Nameplate Voltage | 115/208-230V AC |
| Motor Type | Induction |
| Motor Speed (Maximum) | 3,450 RPM |
| Max. Specific Gravity | 1.8 |
| Suction Port | 1-1/2 in FNPT |
| Discharge Port | 1-1/2 in MNPT |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
