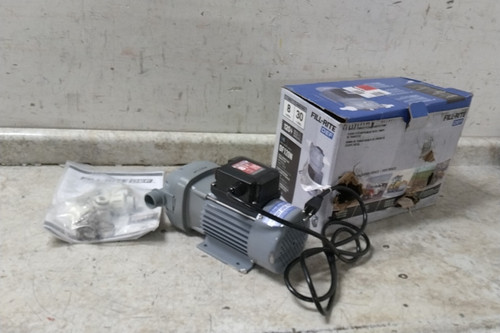

This is a Fill-Rite electric operated drum pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to test the unit any further. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. The mounting is damaged as well. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Electric Operated Drum Pump |
| Manufacturer Part Number | DF120N |
| Pump Package Type | Basic Pump without Discharge Hose |
| Power Source | Electric |
| Rated Voltage | 120V AC |
| Nominal Voltage | 110V AC |
| Number of Phases | 1 |
| Motor HP | 1/4 hp |
| Full Load Current (A) | 2.4 A |
| Frequency (Hz) | 60 Hz |
| Motor Enclosure | TEFC |
| Motor Speed (RPM) | 3,400 RPM |
| Motor Type | Capacitor Start |
| For Media Type | DEF |
| Max. Flow Rate | 10 gpm |
| Max. Head | 30 ft |
| Max. Head Pressure | 38 psi |
| Max. Outlet Pressure | 38 psi |
| Max. Viscosity | 40 cps |
| Min. Fluid Temperature | 15 °F |
| Max. Fluid Temperature | 120 °F |
| Diesel Exhaust Fluid Compatible | Yes |
| Housing Material | Polypropylene |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Metered | No |
| Suction Tube OD | 1 in |
| Suction Tube Material | EPDM |
| For Container Size | 55 gal275 gal330 gal |
| For Container Type | Drum; Tote |
| Includes Bung Adapter | No |
| Wetted Materials | EPDM; Nylon; Santoprene; Stainless Steel |
| For Use With | Diesel Exhaust Fluid |
| Pump Connection OD | 1 in |
| Pump Connection ID | 3/4 in |
| Pump Connection Type | BSP |
| Discharge Connection Type | BSP |
| Discharge Tube Outlet ID | 3/4 in |
| Discharge Tube Outlet OD | 1 in |
| Self-Priming | Yes |
| Runs Dry | Yes |
| Seal Material | EPDM |
| Variable Speed | No |
| Plug Type | Type B |
| Noise Level | 80 db |
| Adapter Material | Nylon |
| Height Above Container | 2-1/2 in |
| Overall Length | 15-1/4 in |
