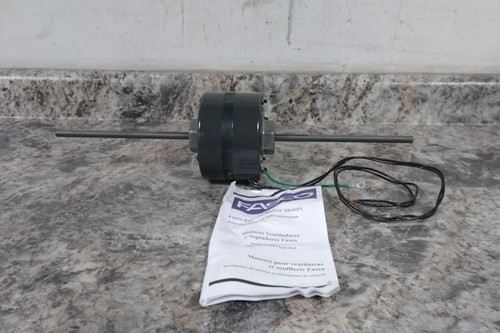

This is a Fasco air conditioner motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Air Conditioner Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Fan Coil |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| No. of Speeds | 1 |
| HP | 1/25 |
| Nameplate RPM | 1,550 |
| Voltage | 115VAC |
| Hz | 60 Hz |
| Full Load Amps | 1.4 A |
| Phase | Single |
| Frame | 4.4 |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Ins. Class | A |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 104 °F |
| Motor Mounting Type | Ring |
| Motor Mounting Position | Horizontal |
| Number of Shafts | 1 |
| Shaft Dia. | 3/8 in |
| Shaft Length | 7-1/4 in |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Flat |
| Length Less Shaft | 4-1/4 in |
| Body Dia. | 4-3/8 in |
| Mounting Stud Location | Lead End; Shaft End |
