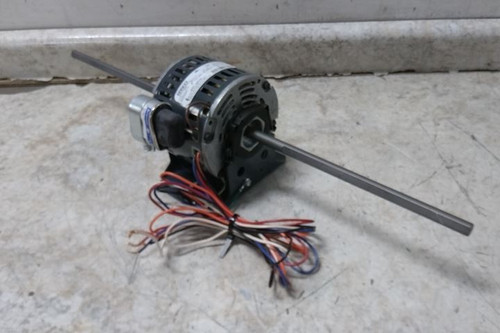

This is a Fasco room air conditioner motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The capacitor appears to have some slight bends/dents. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Room Air Conditioner Motor |
| Manufacturer Part Number | D291A |
| Compatible Brand | Fasco |
| Phase | Single |
| Motor Design | Permanent Split Capacitor |
| Nameplate Horsepower @ 60 Hz | 1/40 hp; 1/25 hp; 1/15 hp; 1/10 hp |
| Nameplate RPM @ 60 Hz | 1,050 RPM |
| Nameplate Voltage @ 60 Hz | 115V AC |
| Frame Size | 42 |
| Full Load Current @ 60 Hz | 0.7 A; 1.0 A; 1.4 A; 2.2 A |
| Shaft Diameter | 1/2 in |
| Shaft Length | 10-7/16 in |
| Overall Length | 24-5/8 in |
| Usable @ 200V | Not Usable at 200V |
| Motor Shaft Rotation | CWSE |
| Weight | 10.73 lb |
| Usable @ 208V | Not Usable at 208V |
| Number of Shafts | 2 |
| Number of Speeds | 4 |
| Mounting Type | Resilient Ring |
| Motor Thermal Protection | Auto |
| Ambient Temperature - Maximum | 40 °C |
| Bearing Type | Ball |
| Body Diameter | 5 in |
| Duty | Continuous |
| Frame Material | Steel |
| Insulation Class | B |
| Motor Enclosure Type | Open Air Over |
| Nameplate Service Factor @ 60 Hz | 1 |
| Sub Application | Room Air Conditioner; Unit Heater |
