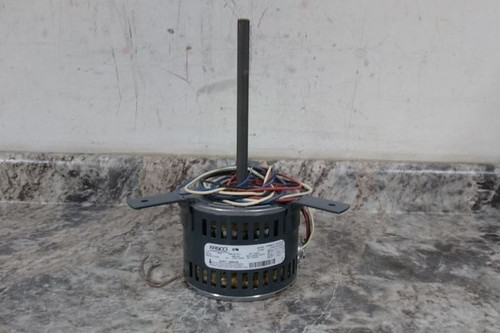

This is a Fasco condenser fan motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | D1048 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Condenser Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| No. of Speeds | 3 |
| HP | 1/20 |
| Nameplate RPM | 1,075 |
| Voltage | 277V AC |
| Full Load Amps | 0.5 A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 42 |
| OEM Replacement Brand | IEC |
| Replacement For | 5KCP29FK8132S |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Max. Ambient Temp. | 104 °F |
| Motor Shaft Rotation | CWSE |
| Motor Mounting Type | Lug |
| Motor Frame Material | Steel |
| Number of Shafts | 1 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 7-5/16 in |
| Motor Shaft Design | Flat |
| Motor Bearings | Sleeve |
| Overall Length | 11-1/8 in |
| Length Less Shaft | 3-13/16 in |
| Body Dia. | 5.2 in |
| Capacitor Required | Yes |
| Bolt Circle Dia. | 4-5/8 in |
| Stud Size | #8-32 X 1/16 in |
| Weight | 12 lb |
