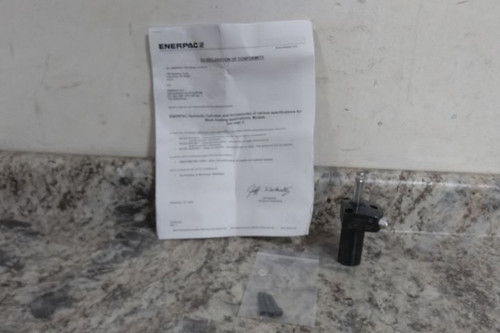

This is an Enerpac swing clamp hydraulic cylinder. Pleas refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Swing Clamp Hydraulic Cylinder |
| Cylinder Type | Swing |
| Body Material | Steel |
| Mounting Style | Upper Flange |
| Single Acting/Double Acting | Double Acting |
| Turns | Left |
| Clamping Force | 475 lbf |
| Total Stroke | 1.91 in |
| Effective Area Clamped | 1.92 sq in |
| Clamping Stroke | 1.25 in |
| Max. Pressure | 5,000 psi |
| Swing Angle | 90 ° |
| Port Size | #2 SAE |
| Effective Area Unclamped | 3.53 sq in |
| Oil Capacity Clamped | 3.53 cu in |
| Oil Capacity Unclamped | 6.77 cu in |
| Max. Oil Flow | 12 cu in/min |
| Pressure Range | 500 to 5000 psi |
| Extended Height | 4.41 in |
| Outside Dia. | 1.1 in |
| Mounting Hole Dia. | 0.225 in |
| Number of Bolts | 3 |
| Bolt Size | #10-32 |
| Min. Hole Depth | 0.63 in |
| Series | SU |
