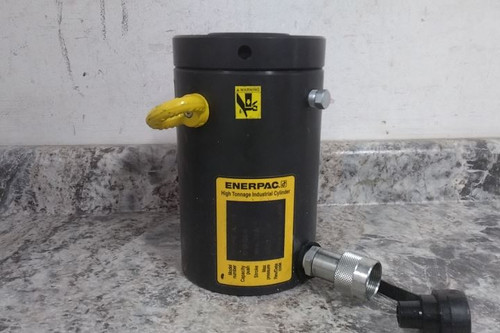

This is an Enerpac lock nut hydraulic ram. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Lock Nut Hydraulic Ram |
| Single Acting/Double Acting | Single Acting |
| Cylinder Type | Lock Nut |
| Body Material | Steel |
| Nominal Capacity | 50 ton |
| Stroke Length | 3-7/8 in |
| Nominal Stroke Length | 4 in |
| Effective Push Area | 12.17 sq in |
| Max. Pressure | 10,150 psi |
| Oil Capacity Push | 47.93 cu in |
| Retracted Height | 8.43 in |
| Extended Height | 12.36 in |
| Outside Dia. | 5.11 in |
| Plunger Dia. | 3.94 in |
| Plunger Thread Size | 1/4 in |
| Collar Thread Size | 1-3/8"-12 |
| Base Bolt Circle Dia. | 4.13 in |
| Center Hole Dia. | 3-7/8 in |
| Series | HCL |
