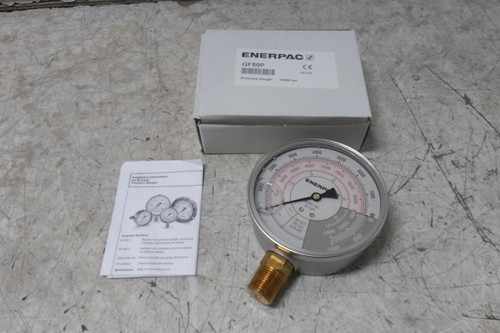

The Enerpac GF50P is a 4-inch dial hydraulic pressure and force gauge calibrated for use with 50-ton hydraulic cylinders. Featuring a dual-scale display up to 10,000 PSI, glycerin-filled stainless steel case, and a 1/2-inch NPT male bottom connection, it provides accurate pressure and load measurements in high-pressure hydraulic applications.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder Pressure Gauge |
| Accuracy | ±1.00% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Hydraulics |
| Blowout Safety Back | No |
| Case Color | Metallic |
| Case Construction | Corrosion Resistant |
| Case Depth | 2 in |
| Case Diameter | 4.3 in |
| Case Material | Stainless Steel |
| Compatible Brand and Series | ENERPAC V-10; ENERPAC V-91 |
| Compatible Cylinder/Press | All 50 ton RC, RR, RAC, RACL Cylinders |
| Compatible Gauge Adapter | Enerpac GA-1Enerpac GA-2 |
| Compatible Manufacturer Model Number | V-10; V-91 |
| Dial Color | White |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Lens Material | Glass |
| Graduations | 100 psi x 1 lbs; 100 psi x 1 ton; 100 psi x 1,000 lbs; 100 psi x 1,000 ton |
| Hazardous Location Rating | Not Rated |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge for Hydraulic Systems |
| IP/NEMA Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Lens Material | Glass |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Nominal Dial Size | 4 in |
| Panel-Mountable | No |
| Pressure Range Type | Pressure |
| Primary Range | 0 to 10,000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Units | psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2 in |
| Process Connection Type | NPTF |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Single |
| Secondary Scale Minor Graduations | 1; 1,000 |
| Secondary Units | lbs; ton |
| Series | GF |
| Vibration Resistance | Liquid-Filled |
| Pressure Range | 0 to 10,000 psi psi |
| Process Connection | 1/2 in NPTF Male |
| Secondary Range | lbs; ton |
