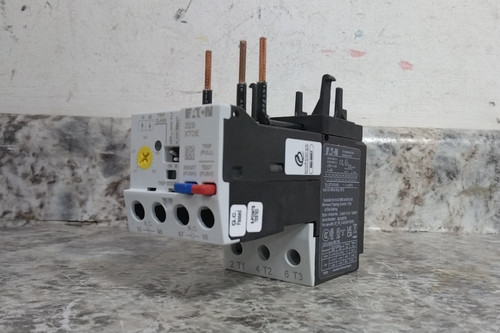

This Eaton XTOE005CGS (ZEB32-5-GF) C440 series electronic overload relay delivers reliable, high-accuracy motor protection with an adjustable current setting from 1 to 5 Amps. Engineered for direct mounting to Frame C contactors, it features integrated ground fault protection, selectable Class 10/20 trip settings, and flexible manual or automatic reset modes.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Overload Relay |
| Manufacturer Part Number | XTOE005CGS |
| Compatible Contactor Series | XT Mini Contactors |
| Compatible Contactors | Frame Size C |
| Frame Size (Key) | C |
| Relay Style | IEC |
| Overload Protection Type | Electronic |
| Relay Mounting Style | Direct To Contactor |
| Thermal Units Required | Not Applicable to Electronic Type Overload Relays |
| Number of Poles | 3 |
| Phase | Three |
| Maximum Overload Relay Current Setting | 5 A |
| Minimum Overload Relay Current Setting | 1 A |
| Trip Class | 10/20 |
| Phase Loss Sensitivity | Yes |
| Reset Type | Auto; Manual |
| IP Rating | IP20 |
| Body Depth | 2.2 in |
| Body Height | 3.5 in |
| Body Width | 1.8 in |
| Ground Fault Protection | Yes |
