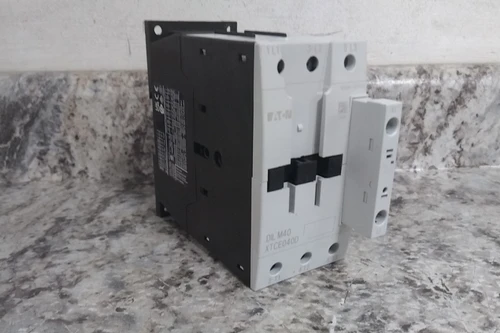

This is an Eaton XTCE040D00B (DIL M40) 3-pole non-reversing IEC motor control contactor. It is rated for 40A inductive / 60A resistive loads, with a 220/240V AC coil (50/60 Hz), Frame D size with screw terminals, and DIN rail or panel mounting capability. A side-mounted auxiliary contact block is attached to the main contactor housing.
Inspection & Condition:
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | IEC Magnetic Contactor |
| Manufacturer Part Number | XTCE040D00B |
| Series | XT |
| Contactor Style | IEC |
| Reversing Capability | Non-Reversing |
| Number of Poles | 3 |
| Main Power Pole Contact Form | 3NO |
| Full Load Current - Inductive | 40 A |
| Full Load Current - Resistive | 60 A |
| Coil Voltage | 220/240V AC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 240V AC |
| Maximum Voltage Rating | 690V AC |
| Horsepower @ Single Phase - 120V AC | 3 hp |
| Horsepower @ Single Phase - 240V AC | 7-1/2 hp |
| Horsepower @ Three Phase - 208V AC | 10 hp |
| Horsepower @ Three Phase - 240V AC | 15 hp |
| Horsepower @ Three Phase - 480V AC | 30 hp |
| Horsepower @ Three Phase - 600V AC | 40 hp |
| Wire Termination Type | Screw |
| Integrated Surge Suppression | Yes |
| IP Rating | IP20 |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | D |
| Overall Height | 4.09 in |
| Overall Width | 2.17 in |
| Overall Depth | 5.78 in |
| Mechanical Operating Durability | 10,000,000 |
| Electrical Operating Durability | 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie) |
| Minimum Operating Temperature | -13 °F |
| Maximum Operating Temperature | 122 °F |
