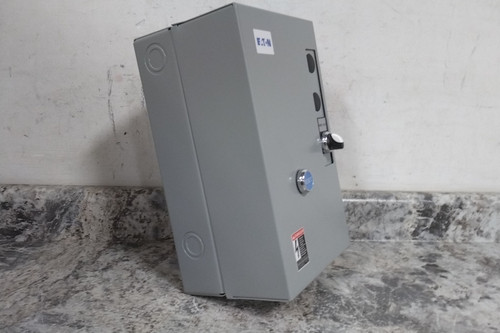

This Eaton ECX09C1AHA-R63/B is an XT IEC non-reversing magnetic motor starter housed in a NEMA 1 general-purpose enclosure. It features a 9A rating, 120V AC coil voltage, 1–5A electronic overload relay, 1NO/1NC auxiliary contacts, and an exterior HAND/OFF/AUTO selector switch with reset button.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | IEC Magnetic Motor Starter |
| Manufacturer Part Number | ECX09C1AHA-R63/B |
| Series | XT |
| Starter Style | IEC |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Electronic |
| Number of Poles | 3 |
| Phase | Three |
| Max Current (AC) | 9 A |
| Coil Voltage | 120V AC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 120V AC |
| Minimum Overload Relay Current Setting | 1 A |
| Maximum Overload Relay Current Setting | 5 A |
| Trip Class | 10A/10/20/30 |
| Exterior Operator Controls | HAND/OFF/AUTO Selector Switch |
| Pilot Lights Included | None |
| Maximum Voltage Rating | 690V AC |
| Horsepower @ Single Phase - 120V AC | 1/2 hp |
| Horsepower @ Single Phase - 240V AC | 1-1/2 hp |
| Horsepower @ Three Phase - 208V AC | 1 hp |
| Horsepower @ Three Phase - 240V AC | 1 hp |
| Horsepower @ Three Phase - 480V AC | 3 hp |
| Horsepower @ Three Phase - 600V AC | 3 hp |
| NEMA Enclosure Rating | 1 |
| IP Rating | IP23 |
| Overall Height | 8.5 in |
| Overall Width | 9 in |
| Overall Depth | 14 in |
| Mounting Style | Surface |
